Everest-D V5

  • Everest-D V5: cut sheet-fed braille printer
  • Everest-D cut sheet-feeder
  • Everest-D V5: user interface
  • Ports on Everest-D V5
  • The BrailleApp web interface

Everest-D is the most popular sheet-fed Braille embosser in the world, since 1992. It is a stable printer, supporting heavy braille printing.





tabs (tap to change)

Everest-D V5 specific features

1366 - New type of V5 embosser

September 2022 Index has launched a new type of the V5 embossers called 1366. The previous V5 embossers are called type 1365 and the main difference between the two types is the main board. The reason for developing this new type of board was because we needed to replace the WiFi/Bluetooth module.

Learn more

Market leading since 1992

The sheet-feeder used in Everst-D is owned by Index Braille. This is why it is fine-tuned for best function oneavy braille paper. The Everest supports a paper width of up to 297 mm and user defined paper sizes.

Learn more

Learn more

Improvements in Everest-D V5

The Everest-D V5 has been updated to include all the latests Braille techniques and compatibility with mainstream technology.

Learn more

Learn more

The Everest sheet-feeder

Braille on cut-sheet paper is the future. The sheet-feeder of Everest-D is optimized to support heavy braille paper.

Learn more

Learn more

Light to sharpen the design

Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.

Learn more

Learn more

Optimized maintaining

All mechanical systems need maintaining. With Index embossers it is minimized to:
  • Cleaning the paper sensors from paper dust
  • Rubbing up the pick up rollers in Everest-D and BrailleBox
  • Cleaning paper dust from the solenoids
  • Upgrading the embosser firmware

Tactile graphics

All Index V5 printers support tactile graphics mixed with braille at the same page. Graphic images are generated by complimentary softwares.


Learn more

Learn more

Common features

Control panel

The control panel is the user interface which allows the user to setup and use embosser.

Learn more

Learn more

BrailleApp web interface

Index V5 printers support the BrailleApp user interface. It is probably the most intuative user interface on the market.


Learn more

Learn more

Braille quality

The New Generation V5 solenoids introduced in October 2018, offers an excellent braille quality. The dot hight and form are maintained during hours of continuous printing.

Learn more

Watch video

Learn more

idB: Index-direct-Braille

idB (Index-direct-Braille) opens the possibility to print standard files without an external braille editor. The file will be translated and formatted within the printer, following the active embosser layout.

Learn more

Learn more

Acapela synthetic speech

In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables dynamic feedback when controlling the embosser.


Learn more

Learn more

Remote support

Via the remote support portal Index team and the distributors have access to selected Index V5 printers. The V5 printer should be connected to a network and upgraded to latest firmware.

Learn more

Learn more

Ports on Index V5

Index V5 printers include USB port, port for USB memory stick, wired network, WiFi network and Bluetooth.

Learn more

Learn more

Accessories



Index Braille Stapler

Index Braille Stapler

A heavy-duty stapler for braille books

The Index Braille Stapler is a heavy-duty stapler in whose design can accommodate for thicker documents such as braille books. It suits nicely braille documents embossed in booklet format using A3 or 11x17" paper, but can be used for any braille documents.

Read more
Paper A3 160 gsm

Paper A3 160 gsm

Cut-sheet A3 paper 160 gsm

Heavy paper suited for Braille books and any other document embossed using booklet format.

Read more
Paper A4 160 gsm

Paper A4 160 gsm

Cut-sheet A4 paper 160 gsm

Heavy paper for embossing with A4 paper on Everest-D. We deliver the paper when you need it - right from stock.

Read more

Latest Windows 11/10/8/7 Printer Driver

Manuals

Drivers

Latest Mac OS X Printer Driver

Latest Firmware

Utilities

Service

Admin

Marketing

Technical specification

Braille

Embossing speed cps

140 cps

Single-sided

Double-sided

Vertical printing (booklet)

Adjustable line spacing

Braille font

2.2, 2.5, 3.2 mm

Tactile resolution

500 dpi

Forming method

13 solenoids against steel anvils

Additional info

The tactile resolution is that we can place a dot with a position of  0.05 mm with the floating dot area descibed on page Floating page braille printing


Communication

USB

USB memory stick

Wi-Fi network

Wired network

Bluetooth

Supports mobile devices

Printer driver for Windows

Printer driver for Mac

Printer driver for Linux

Web interface

Free firmware upgrade

Supports idB

Electrical

Voltage

100-240 V AC

Power max

140 W

Power stand by

5 W

Eco power down

0.05 W

Switched power supply

General

Price

$4,395.00

Warranty

Depending on region

cps/1000 USD

32

Produced by

Produced by:
Index Braille
Hantverksvägen 20
954 33 Gammelstad
Sweden
www.indexbraille.com

Measurements

Height

45 cm (17.72 in)

Width

56 cm (22.05 in)

Depth

18 cm (7.09 in)

Net volume

45.36 dm3 (1.6 ft3)

Net weight

12 kg (26.4 lbs)

Noise level

80 dB(A)

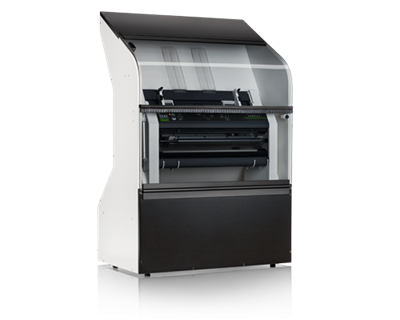

Noise level with acoustic protection

60 dB(A)

Paper

Tractor-fed

-

Cut sheet fed

Paper roll

-

Sheet feeder size

50 pages

Paper weight

80-250 g/m2

Paper width

130-297 mm (5.1"-11.7")

Paper length

120-762 mm (4.7"-30")

Adjustable paper size

Fixed paper size

-
