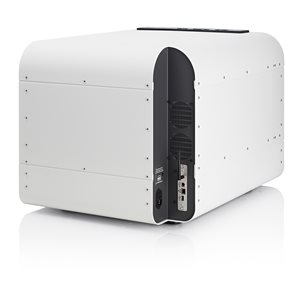

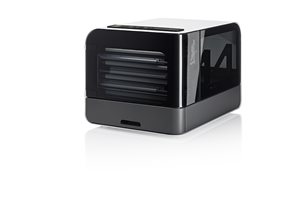

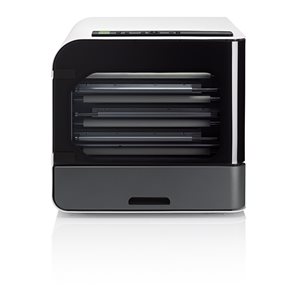

BrailleBox V5

  • Braille Box V5: high volume braille production
  • BrailleBox technical corner
  • Control panel
  • Automated braille tray
  • The BrailleApp web interface

BrailleBox is the only high-speed braille printer for cut-sheet paper.

  • Speed up to 300 characters per second

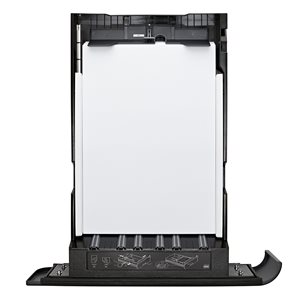

  • 400 pages automatic sheet-feeder
  • Automated braille tray
  • Optimized for booklet production on A3 paper
  • Dot forming height 0,58 mm
  • Noise canceling construction
  • Link to Index YouTube Playlist
tabs (tap to change)

BrailleBox V5 specific features

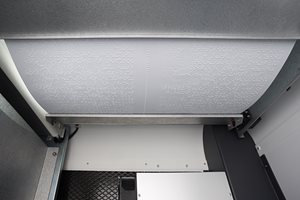

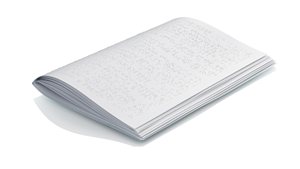

Braille on cut sheet paper

Printing on cut sheet paper is the future. When the printing is finished the braille document is ready to be stapled and read. The paper out handling is easy and quick comparing with tractor-fed paper. Locally available office quality paper can be used.

Learn more

Learn more

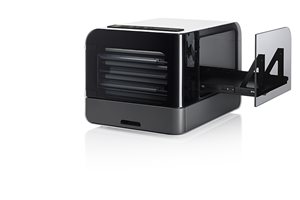

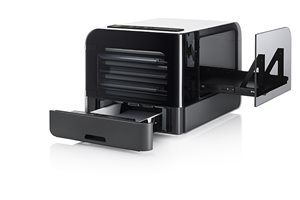

Automatic Braille Tray Door


The braille tray door in BrailleBox V5 opens and closes automatically by pressing the DOOR key on the control panel.

Learn more

Learn more

Noise Canceling Design

As a self-contained unit, BrailleBox's low noise levels are acceptable for working environment.

Learn more

Learn more

International Design Awards

BrailleBox design awards; Red Dot Design, People's choise - Grand Award of Design, German Design Award, Design S and Good Design.

Learn more

Learn more

Optimized maintaining

All mechanical systems need maintaining. With Index embossers it is minimized to:
  • Cleaning the paper sensors from paper dust
  • Rubbing up the pick up rollers in Everest-D and BrailleBox
  • Cleaning paper dust from the solenoids
  • Upgrading the embosser firmware

Tactile graphics

All Index V5 printers support tactile graphics mixed with braille at the same page. Graphic images are generated by complimentary softwares.


Learn more

Learn more

Common features

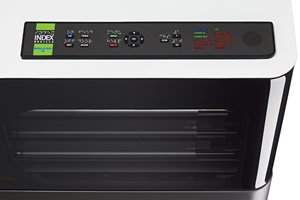

Control panel

The control panel is the user interface which allows the user to setup and use embosser.

Learn more

Learn more

BrailleApp web interface

Index V5 printers support the BrailleApp user interface. It is probably the most intuative user interface on the market.


Learn more

Learn more

Acapela synthetic speech

In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables dynamic feedback when controlling the embosser.


Learn more

Learn more

Remote support

Via the remote support portal Index team and the distributors have access to selected Index V5 printers. The V5 printer should be connected to a network and upgraded to latest firmware.

Learn more

Learn more

idB: Index-direct-Braille

idB (Index-direct-Braille) opens the possibility to print standard files without an external braille editor. The file will be translated and formatted within the printer, following the active embosser layout.

Learn more

Learn more

Braille quality

The New Generation V5 solenoids introduced in October 2018, offers an excellent braille quality. The dot hight and form are maintained during hours of continuous printing.

Learn more

Watch video

Learn more

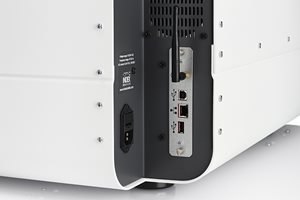

Ports on Index V5

Index V5 printers include USB port, port for USB memory stick, wired network, WiFi network and Bluetooth.

Learn more

Learn more

Accessories

Index Braille Stapler

Index Braille Stapler

A heavy-duty stapler for braille books

The Index Braille Stapler is a heavy-duty stapler in whose design can accommodate for thicker documents such as braille books. It suits nicely braille documents embossed in booklet format using A3 or 11x17" paper, but can be used for any braille documents.

Read more
Paper A3 160 gsm

Paper A3 160 gsm

Cut-sheet A3 paper 160 gsm

Heavy paper suited for Braille books and any other document embossed using booklet format.

Read more

Latest Windows 11/10/8/7 Printer Driver

Manuals

Drivers

Latest Mac OS X Printer Driver

Latest Firmware

Utilities

Service

V5 BrailleBox pick-up motor fix

The montage of the pick-up motor on BrailleBox V5 has been made with sligtly too long screews. To solve this potential issue is recommended to ad washers to the two screws. S/n 6549 and above has correct screw length.

PDF

Admin

Technical specifications

General

Price

$0.00

Warranty

Depending on region

cps/1000 USD

Produced by

Produced by:
IndexBraille
Hantverksvägen 20
954 33 Gammelstad
Sweden
www.IndexBraille.com

Braille

Embossing speed cps

300 cps

Single-sided

Double-sided

Vertical printing (booklet)

Adjustable line spacing

Braille font

2.5 mm

Tactile resolution

50 dpi

Forming method

3 printing heads with 13 solenoids in each

Paper

Tractor-fed

-

Cut sheet fed

Paper roll

-

Sheet feeder size

400 pages

Paper weight

150-180 g/m2 (80-110 lbs)

Paper width

A3 (297x420 mm), Tabloid 11"x17"

Paper length

11"x11.5", A4, 11x8,5" B4 250x353 mm

Adjustable paper size

-

Fixed paper size

Measurements

Height

56 cm (22.05 in)

Width

72 cm (28.35 in)

Depth

90 cm (35.43 in)

Net volume

362.88 dm3 (12.81 ft3)

Net weight

68.2 kg (150.04 lbs)

Noise level

70 dB(A)

Noise level with acoustic protection

Communication

USB

USB memory stick

Wi-Fi network

Wired network

Bluetooth

Supports mobile devices

Printer driver for Windows

Printer driver for Mac

Printer driver for Linux

Web interface

Free firmware upgrade

Supports idB

Electrical

Voltage

100-240 V AC

Power max

400 W

Power stand by

5 W

Eco power down

1.0 W

Switched power supply
